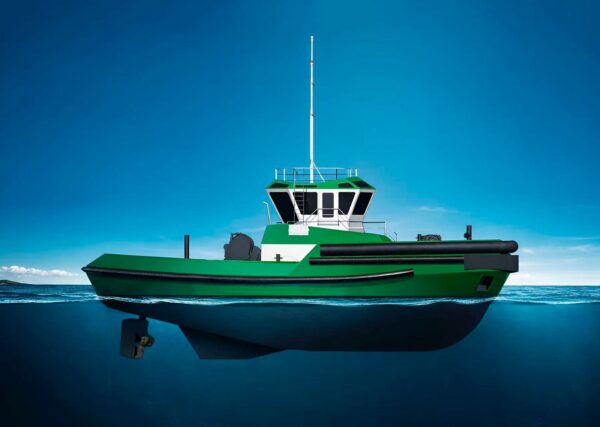

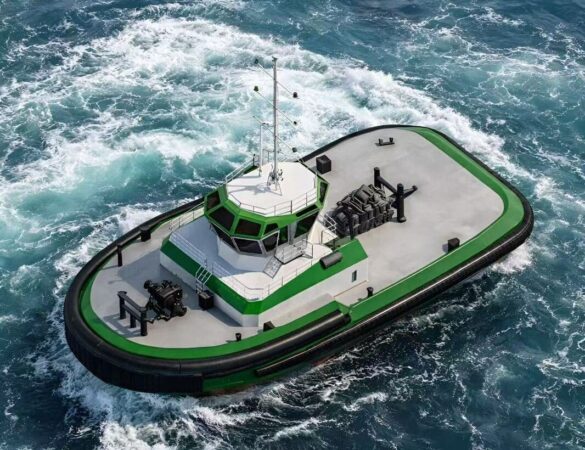

28m 65T ELECTRIC HARBOUR TUG
A Bureau Veritas classed electric hybrid tug engineered by BlueGen Marine for harbour support and offshore operations across India, Africa & the Middle East — combining battery-electric propulsion with firefighting capability.
- LOA 28.0m
- 10 knots Service Speed
- 65 Ton Bollard Pull
OUTLINE SPECIFICATION
Principal particulars for the BlueGen Marine 28m 65T Electric Harbour Tug, classed by Bureau Veritas for unrestricted navigation.
| Principal Particulars | |
|---|---|
|
Vessel Type |
Electric Tug |
|
Builder |
BlueGen Marine Pvt Ltd |
|
Designer |
Mega Salutes Ship Design SDN BHD |
|
Classification |
Bureau Veritas |
|
Notation |
HULL, MACH Tug, Fire Fighting Ship 1, Battery System, Electric Hybrid (PM), Unrestricted Navigation |
|
Length Overall |
28.0 m |
|
Beam Moulded |
12.8 m |
|
Depth Moulded |
5.0 m (From BL) |
|
Design Draft |
3.80 m (From BL) |
|
Max. Draft |
4.40 m (From Skeg) |
|
Complement |
10 Men |
| Propulsion System | |
|---|---|
|
Thrusters |
2 x 2000kW Electric Azimuth, FPP |
|
Battery Capacity |
4800 kWh LFP Battery |
|
Shore Charging |
6600VAC, 2000kW |
|
Back-Up Generator |
2 x 545ekW |
| Performance | |
|---|---|
|
Bollard Pull Ahead |
65T (Approx.) |
|
Bollard Pull Astern |
60T (Approx.) |
|
Service Speed |
10 knots (Approx.) |
| Tank Capacities | |
|---|---|
|
Fuel Oil |
Approx. 71 m³ |
|
Fresh Water |
Approx. 52 m³ |
|
Foam Tank |
Approx. 7 m³ |
|
Dispersant |
Approx. 7 m³ |
|
Dirty Oil Tank |
Approx. 5 m³ |
| Deck Machinery | |
|---|---|
|
Anchor Windlass / Towing Winch FWD |
1 x Electric Winch; Brake Holding 170T |
|
Towing Winch AFT |
1 x Electric Winch; Brake Holding 162.5T |
| Auxiliary Equipment | |
|---|---|
|
External FIFI |
2 x 1400 m³/hr pump c/w water spray |
|
Fire Monitors |
2 x 1200 m³/hr monitor |
|
STP |
1 x IMO 10men Capacity |
|
OWS |
1 x <15ppm |
| Accommodation | |
|---|---|
|
Total POB |
10 Men |
|
1-Man Cabin |
Two (2) |
|
2-Men Cabin |
Four (4) |
|
Mess Room |
One (1) |
| Navigation & Communication | |
|---|---|
|
GMDSS Area |
Area A1 |
|
Radar |
One (1) |
|
DGPS |
One (1) |
|
Speed Log |
One (1) |
|
Echo Sounder |
One (1) |
|
Magnetic Compass |
One (1) |
|
Gyro Compass |
One (1) |
|
Navtex Receiver |
One (1) |
|
EPIRB |
One (1) |
|
Autopilot |
One (1) |
|
AIS |
One (1) |
|
Fixed VHF / DSC |
One (1) |
|
Portable VHF |
Two (2) |
