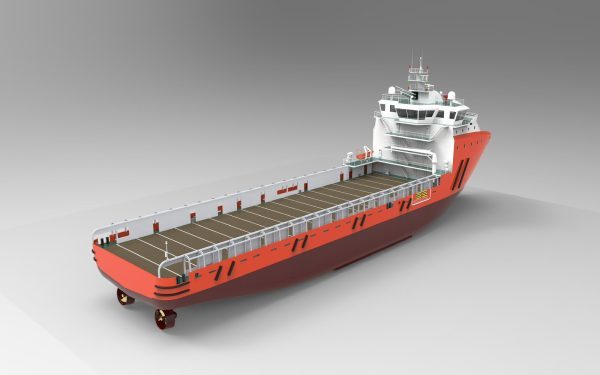

4000 DWT PLATFORM SUPPLY VESSEL
An American Bureau of Shipping classed offshore support vessel engineered by BlueGen Marine for supply, fire-fighting and oil spill recovery operations — combining DPS-2 dynamic positioning with a 930m² cargo deck across India & the Middle East.
- LOA 85.0m
- 13.5 knots @ Design Draft
- 4000 Ton DWT Max
OUTLINE SPECIFICATION
Principal particulars for the BlueGen Marine 4000 DWT Platform Supply Vessel, classed by the American Bureau of Shipping for offshore support, fire-fighting and oil spill recovery operations.
| Principal Particulars | |
|---|---|
|
Vessel Type |
Offshore Support Vessel, Fire Fighting & Oil Spill Recovery |
|
Builder |
BlueGen Marine Pvt Ltd |
|
Designer |
Blue Marine Solutions |
|
Classification |
American Bureau of Shipping |
|
Notation |
+A1, Circle E, Offshore Support Vessel (Supply-HNLS, FFV 1, OSR-C1, SPS), +DPS-2, +AMS, +ACCU, GP, UWILD, CR |
|
Length Overall |
85.00 m (Approx) |
|
Length BP |
79.67 m |
|
Beam Moulded |
18.6 m |
|
Depth Moulded |
8.0 m |
|
Design Draft |
5.50 m |
|
Max. Draft |
6.00 m |
|
Cargo Deck Area |
930 m² (Approx) |
|
Deck Cargo |
2000 Ton (Approx) |
|
Deck Load |
7.5 Ton/m² |
| Propulsion System | |
|---|---|
|
Aux Genset |
4 x 1600 KWe (Approx) |
|
EM / Harbour Genset |
1 x 370 KWe (Approx) |
|
Main Propeller |
2 x 1800 KW, ASD, FPP |
|
Side Thrusters |
3 x 800 kW (Approx) |
| Performance | |
|---|---|
|
Endurance |
30 days (Approx) |
|
DWT Max |
4200 ton (Approx) |
|
Speed @ 5.5m Draft |
13.5 knots (Approx) |
| Tank Capacities | |
|---|---|
|
Fuel Oil Ship |
1000 m³ (Approx) |
|
Potable Water |
700 m³ (Approx) |
|
BW / Drilling Water |
1600 m³ (Approx) |
|
Mud / Brine |
1050 m³ (Approx) |
|
Recovery Oil |
840 m³ (Approx) |
|
Methanol / LFL |
280 m³ (Approx) |
|
Base Oil |
210 m³ (Approx) |
|
Dry Bulk |
370 m³ (Approx) |
|
Foam |
10 m³ (Approx) |
|
Dispersant |
10 m³ (Approx) |
| Deck Layout | |
|---|---|
|
Provision Crane |
1 x 1.5t @ 8.0m |
|
Anchor Winch |
2 x Hydr. Driven, 1 Drum, 1 Gypsy, 1 Warping Head |
|
Capstan |
2 x Hydr. Driven Vertical Capstan, 10t Pull |
|
Tugger Winch |
2 x Hydr. Driven Single Drum Winch, First Layer 10T |
| External Fire Fighting & Anti-Pollution | |
|---|---|
|
Fi-Fi Pump |
2 x Fire-Fighting Pump 1800 m³/hr |
|
Fi-Fi Monitor |
2 x 1200 m³/hr Water & 300 m³/hr Foam (Remote or Manual Control) |
|
Anti-Pollution |
1 x Dispersant Pump & Boom, Nozzle |
| Accommodation | |
|---|---|
|
Total POB |
60 P (MLC 2006, SPS) |
| LSA & FFA Equipment | |
|---|---|
|
Rescue Boat |
1 x FCR, 9 Persons (SOLAS) |
| Nautical & Communication Equipment | |
|---|---|
|
GMDSS Equipment |
2 x Area A1+A2+A3 |
|
Radar |
1 x X-Band, 1 x S-Band |
|
DP System |
1 x DPS-2 |
|
Cyber Security |
To Be Fitted |
